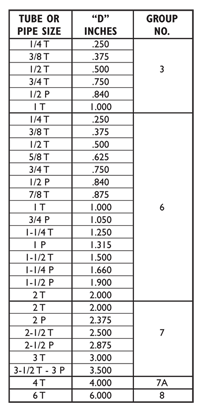

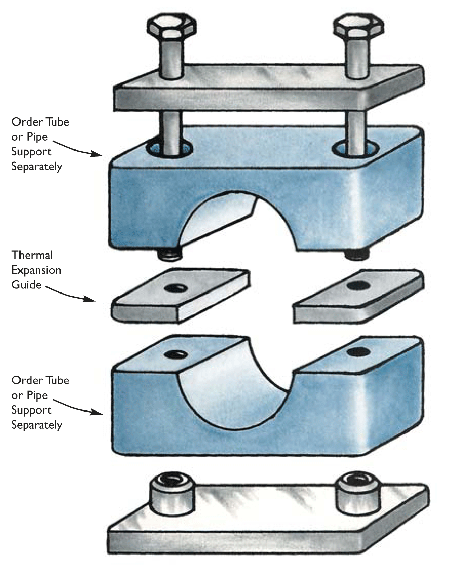

	Thermal Expansion Guide Size Range: For plastic insert sizes 1/4" through 6" diameter. Material: Santoprene Color: Black for easy I.D. Service: Provides for axial expansion of the tube or pipe due to Thermal Expansion. 1 set of 2 per pipe clamp. Installation: Assemble between clamp halves during pipe clamp assembly as shown. Ordering: Specify figure number, name and tube or pipe size. Order quantity 1 set of 2 per pipe clamp.
