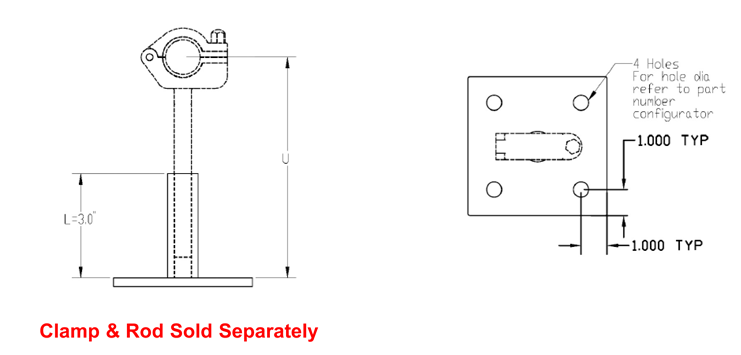

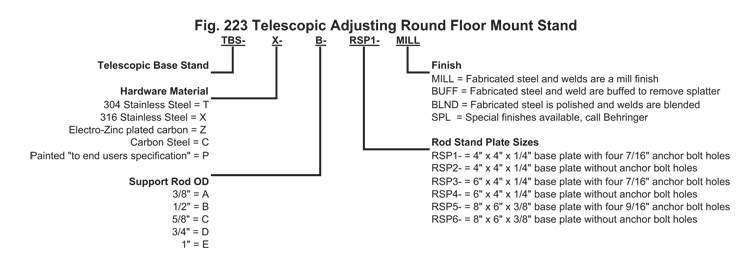

Industrial Clamp Drawing Downloads Click here for more info: Configurable 3D & 2D Drawings/Models Behringer Webinars Click here for more info: Behringer's Product Specific Webinars Behringer Interchange Elements Click here for Behringer's Interchange Elements:	Telescopic Base Stand The Telescopic Adjusting Round Floor Mount Stand allows the housing’s rod elevation to be adjusted up to 2” from the base plate’s surface. The rod attached to the housing slides inside the base plate’s elevation adjustment tube. This fine tune adjustment allows the installer to quickly change the support’s elevation to match the tube’s distance from the floor. The base plate can be supplied with or without anchor bolt holes. Anchor bolts not supplied by Behringer. Base Plate Sizing:: RSP1 & RSP2 - 0.25” to 2.00” OD tube & pipe sizes RSP3 & RSP4 - 2.05” to 4.50” OD tube & pipe sizes RSP5 & RSP6 - 5.08” to 6.00” OD tube & pipe sizes Hardware Material:: 304 stainless steel, 316 stainless steel, carbon steel & zinc plated Finish: Mill = Fabricated steel and welds are a mill finish Buff = Fabricated steel and welds are buffed to remove splatter BLND = Fabricated steel is polished and welds are blended Special finishes and painted stanchions are available, call Behringer
