Rod Stand Plate

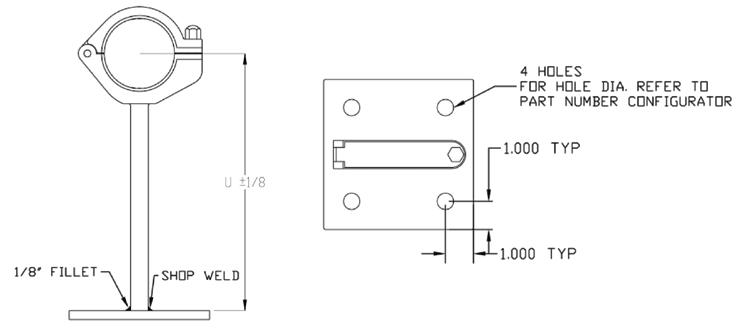

One piece CH Series Rod Stand Plate with rod cut to specified length. The rod is welded to the base plate, which can be supplied with or without anchor bolt-holes. Anchor bolts not supplied by Behringer.

The height is calculated from the top of the plate to centerline of tube or pipe. Please refer to "U" min column in catalog for minimum height of the required RH series product.

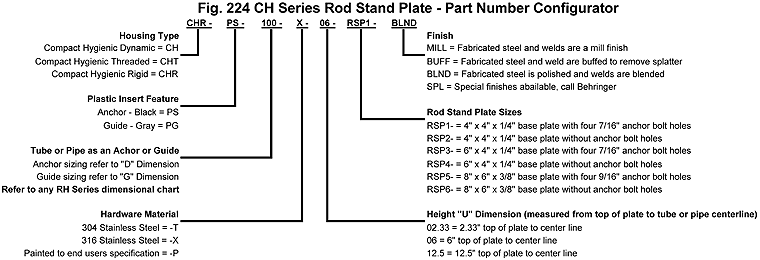

Base Plate Sizing: RSP1 & RSP2 - 0.25" to 2.00" OD tube & pipe sizes
RSP3 & RSP4 - 2.05" to 4.50" OD tube & pipe sizes
RSP5 & RSP6 - 5.08" to 6.00" OD tube & pipe sizes
Hardware: 304 stainless steel, 316 stainless steel
Finish: Mill = Fabricated steel and welds are a mill finish
Buff = Fabricated steel and welds are buffed to remove splatter
BLND = Fabricated steel is polished and welds are blended
Special finishes and painted stanchions are available, call Behringer
