Formerly Fig. 100 RHW 304 Stainless Steel
One piece unit with weld plate attached to hanger housing. Rigid "Anchor or Guide" Support with Weld Plate |
 |
| Features: |
Rounded housing is mounted on a weld plate. This type rod connection does not offer the dynamic slope adjustment feature. The rigid hanger is ideal for supporting vertical runs and reducing vibrations. |
| Size Range: |

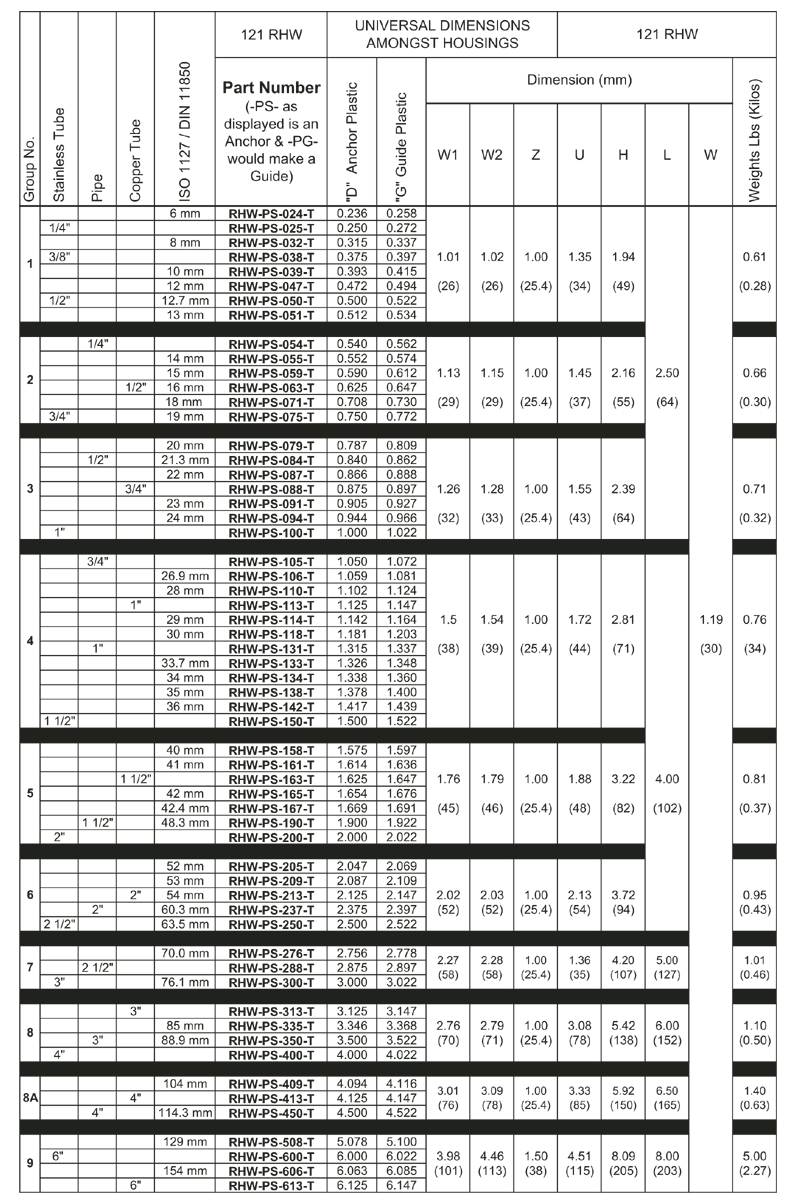

0.24" diameters through 6.125" diameter covering imperial tube and pipe size and metric ISO and DIN sizes |
| Hardware: |
304 stainless steel (Standard), 316 stainless steel and carbon steel as an option |
| Finish: |
Stainless steel at a 25 RA |
| Plastic: |
Polysulfone (Black = Anchor and Gray = Guide) |
| Shearing: |
Anchors - Refer to shear force diagram in technical section Guides - Allows free axial movement for thermal expansion of tube or pipe |
