Fig. 121 RHR 304 Stainless Steel
Rigid "Anchor or Guide" Hanger

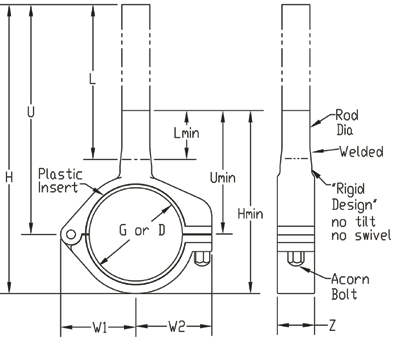

One piece unit with rod welded to the hanger housing. Standard rod
length is 6". |
 |
| Features: |
The rigid hanger is ideal for supporting vertical runs and reducing vibrations. This type rod connection does not offer the dynamic slope adjustment. 6" rod is the standard length with other lengths available. RHR Rigid Bar can also be used in combination with the Hang Mount Stanchion or Floor Mount Stanchion. This combination will allow the support to be adjusted telescopically to the tube or pipe elevation. Call customer service for the price and availability of special rod lengths. |
| Size Range: |

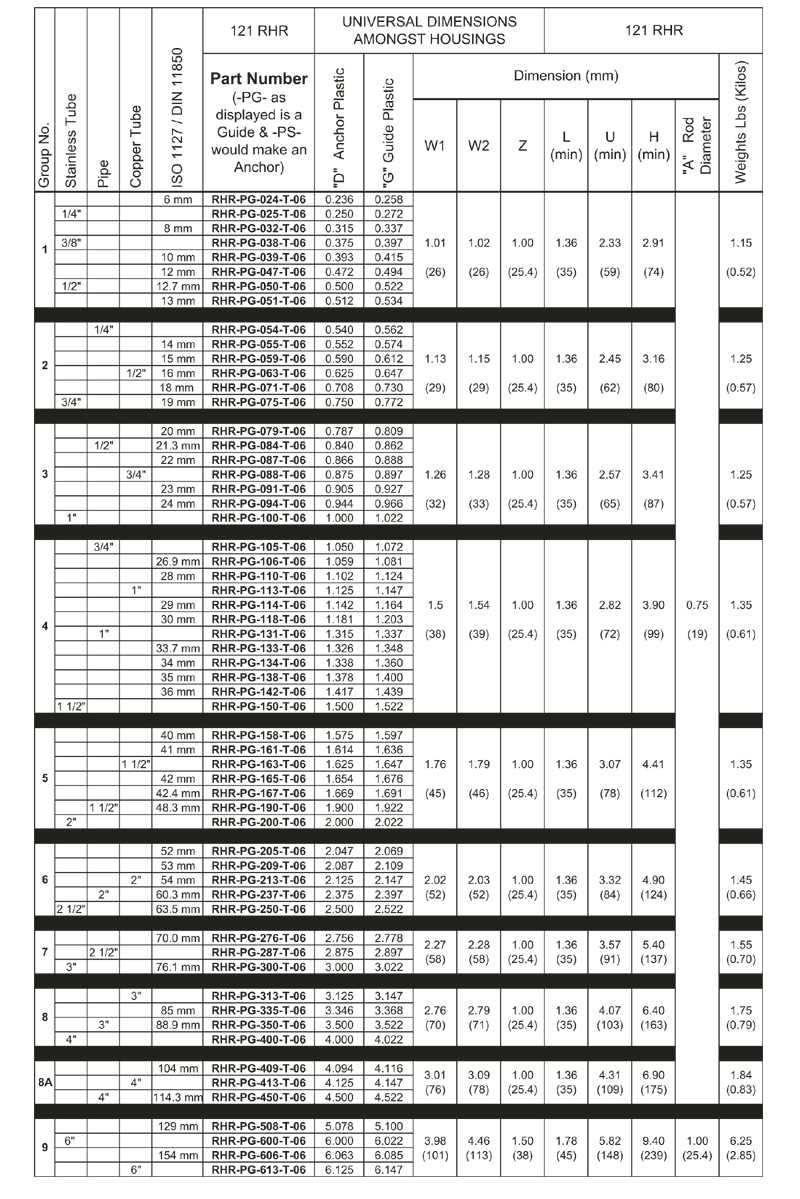

0.24" diameters through 6.125" diameter covering imperial tube and pipe size and metric ISO and DIN sizes |
| Hardware: |
304 stainless steel (Standard), 316 stainless steel and carbon steel as an option |
| Finish: |
Stainless steel at a 25 RA |
| Plastic: |

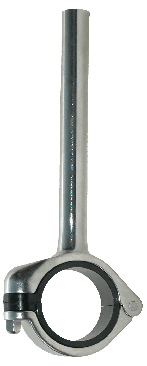

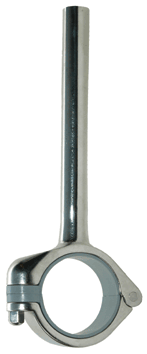

Polysulfone (Black = Anchor and Gray = Guide) |
| Shearing: |
Anchors - Refer to shear force diagram in technical section Guides - Allows free axial movement for thermal expansion of tube or pipe |
