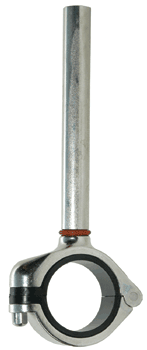

| Dynamic "Anchor or Guide" Slope Adjusting Hanger/ Rod Mount Unit 304 Stainless Steel |
 |
| One piece unit with attached 6" dynamic rod. Hanger rods are available in lengths ranging from min. of 1.26" to 96" |
| Features: |
A dynamic union between the hanger rod and hanger housing allows for the housing to self adjust to the tubes slope for drainability as well as a 360° swivel. A6" rod is the standard length with other lengths available. RH Dynamic Mount Hanger can also be used in combination with the Hang Mount Stanchion or Floor Mount Stanchion. This combination will allow the support to be adjusted telescopically to the tube or pipe elevation. Call customer service for the price and availability of special rod lengths. |
| Size Range: |

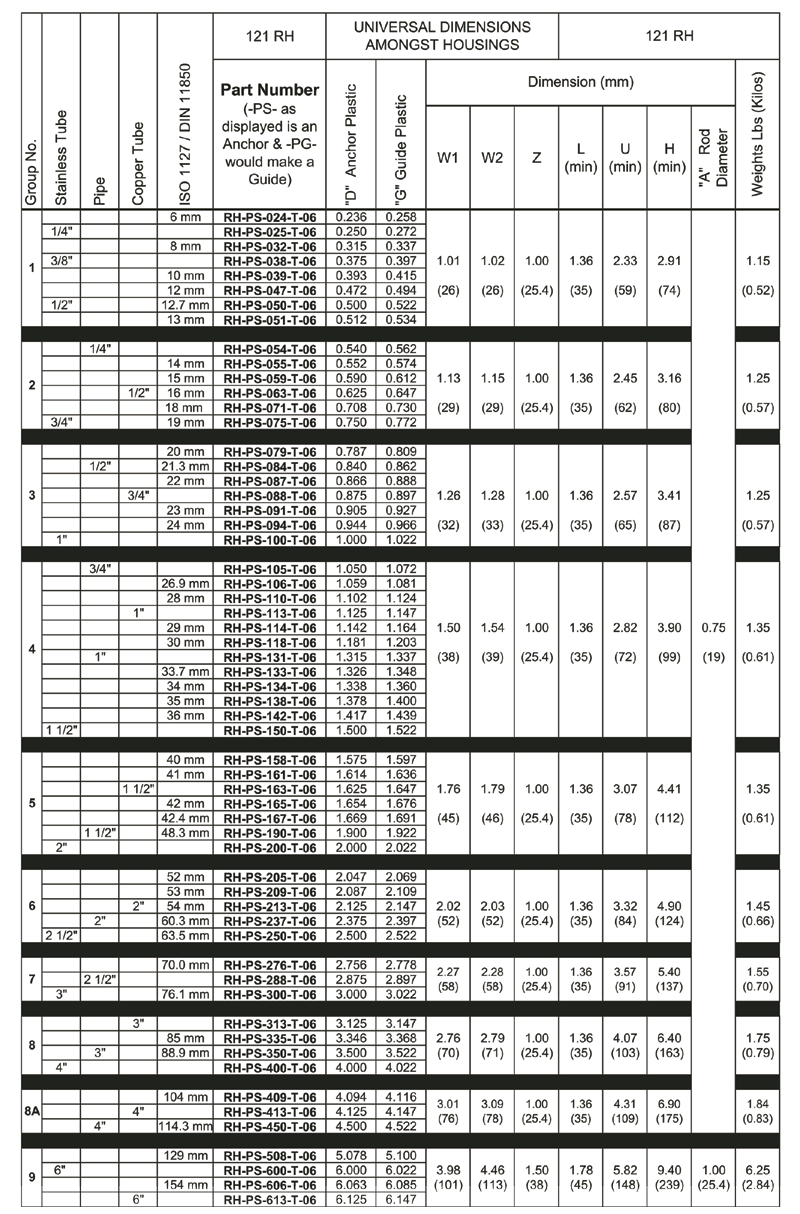

0.24" diameters through 6.125" diameter |
| Hardware: |
304 stainless steel (Standard), 316 stainless steel and carbon steel as an option |
| Finish: |
Stainless steel at a 25 RA |
| Plastic: |

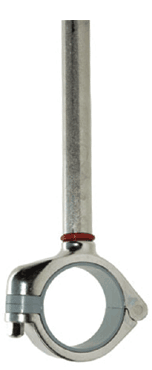

Polysulfone (Black = Anchor and Gray = Guide) |
| Shearing: |
Anchors - Refer to shear force diagram in technical section Guides - Allows free axial movement for thermal expansion of tube or pipe |
