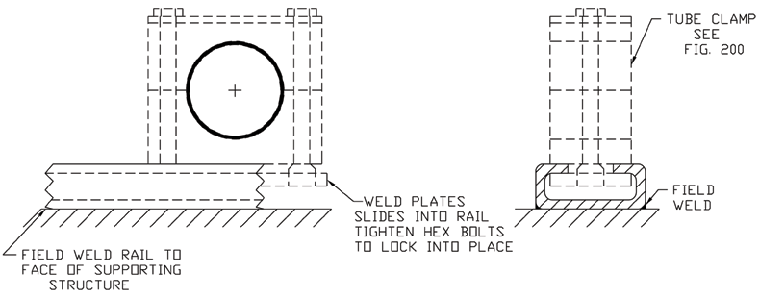

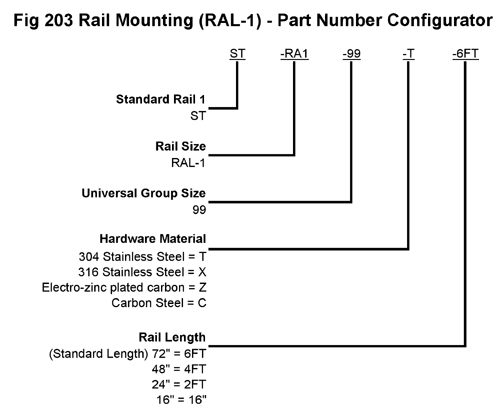

Industrial Clamp Drawing Downloads Click here for more info: Configurable 3D & 2D Drawings/Models Behringer Webinars Click here for more info: Behringer's Product Specific Webinars Behringer Interchange Elements Click here for Behringer's Interchange Elements:	Rail Mounting Size Range: Rail accomodates clamps from 1/4" through 4" tube Hardware Material: 304 Stainless, 316 Stainless or Zinc Plated Carbon Installation: Weld Rail (RAL-1) to structure or supporting member. Slide clamp weld plate into rail, locate proper position and assemble clamp.
