Duplex-Tank Top Return Line Filter Pi 5100
Nominal size 40 up to 1000 according DIN 24550
1. Features
High performance filters for modern hydraulic systems
  • Provided for tank top installation
  • Modular system
  • Compact design
  • Minimal pressure drop through optimal flow design
  • Visual/electronic/electronical maintenance indicator
  • Threaded and flanged connections
  • Quality filters, easy to service
  • Equipped with highly efficient glass fibre Sm-x/PS filter elements
  • Beta rated elements according to ISO 16889 multipass test
  • Elements with high differential pressure stability and dirt holding capacity
  • Worldwide distribution
2. Flow rate/pressure drop curve complete filter
see data sheet PI 5000

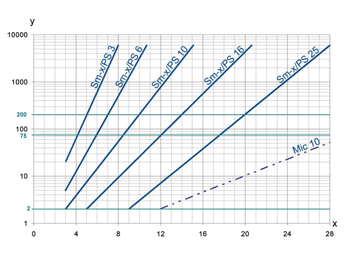

3. Separation grade characteristics 4. Filter performance data

y=beta-value
x=particle size µm}

determined by multipass tests (ISO 16889)
calibration according to ISO 11171 (NIST)

 tested according to ISO 16889 (multipass test)

Sm-x/PS Elements with
max.Δ p 10 bar

Sm-x  3  ß5(c)  ≥200
PS
Sm-x  6  ß7(c)  ≥200
PS
Sm-x  10  ß10(c)  ≥200
PS
Sm-x  16  ß15(c)  ≥200
PS
Sm-x  25  ß20(c)  ≥200
PS

values guaranteed up to
5 bar differential pressure
5. Quality assurance

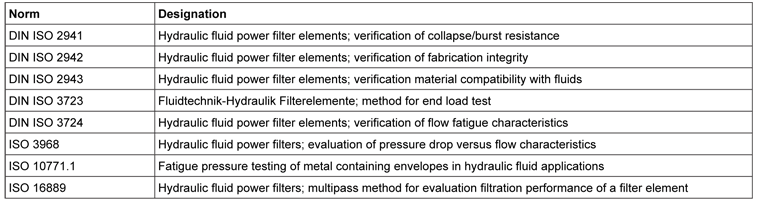

MAHLE filters and filter elements are produced according to the following international standards:
6. Symbols
see data sheet Pi 5000

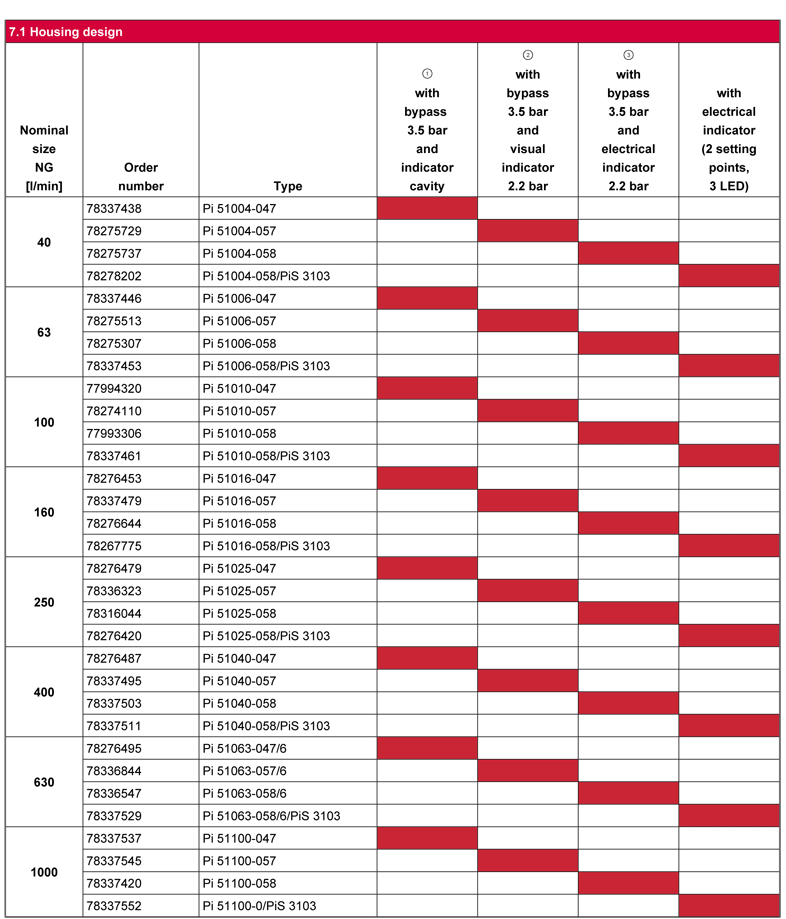

7. Order Numbers
8. Technical specifications
see data sheet Pi 5000

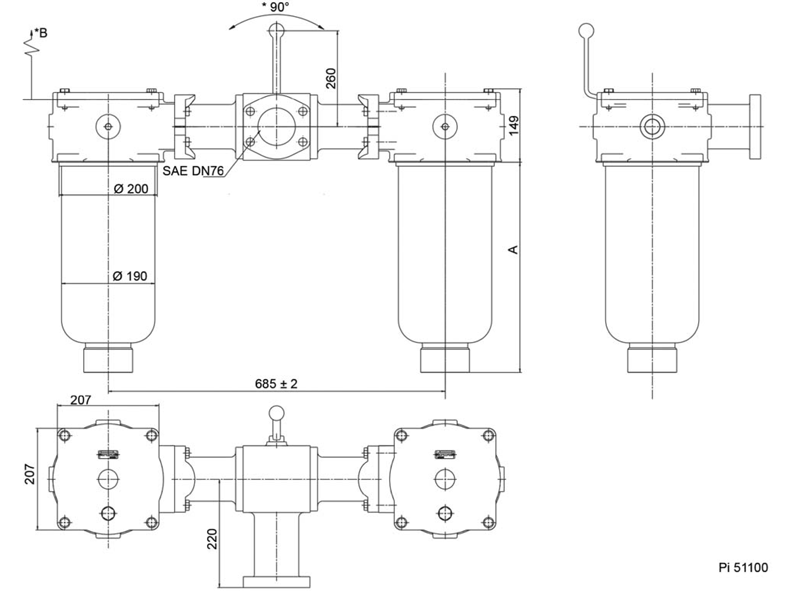

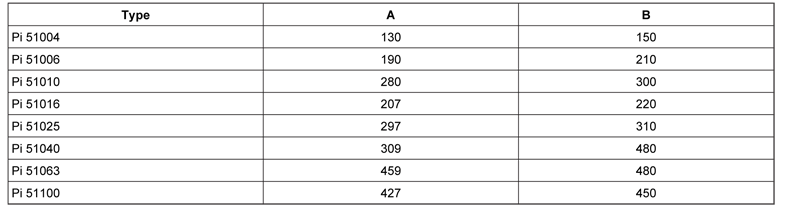

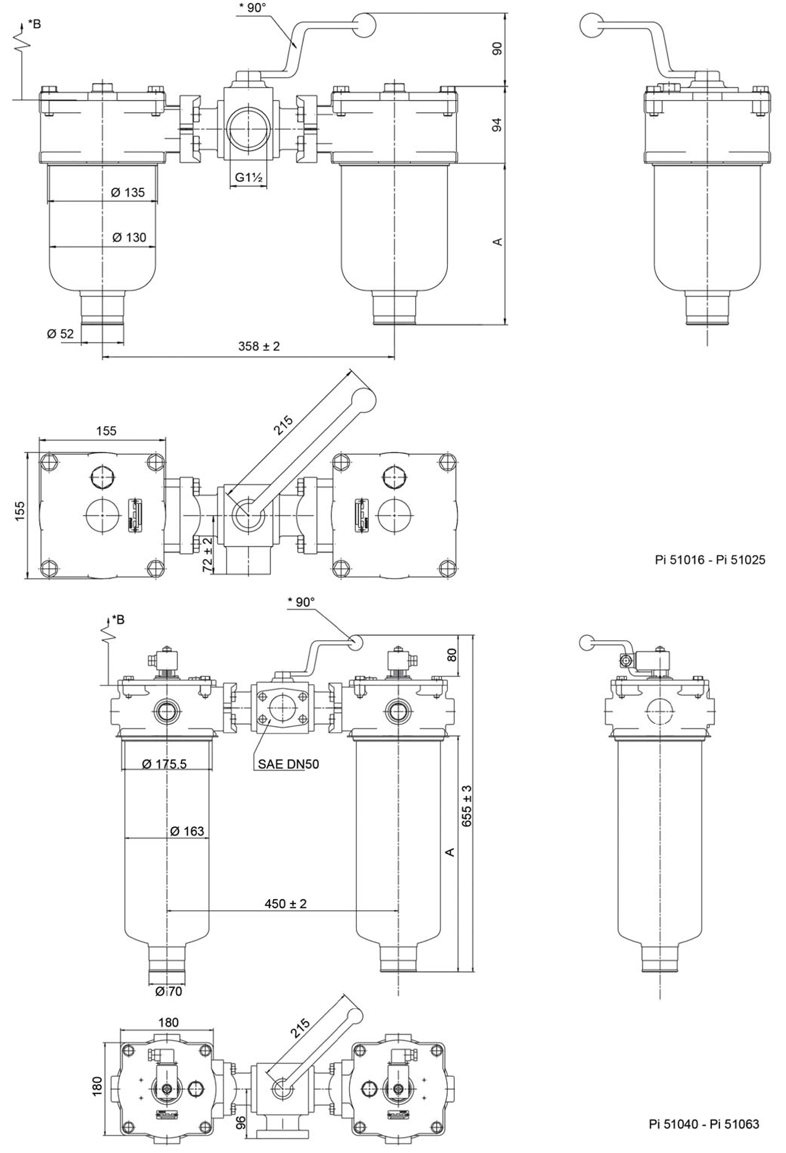

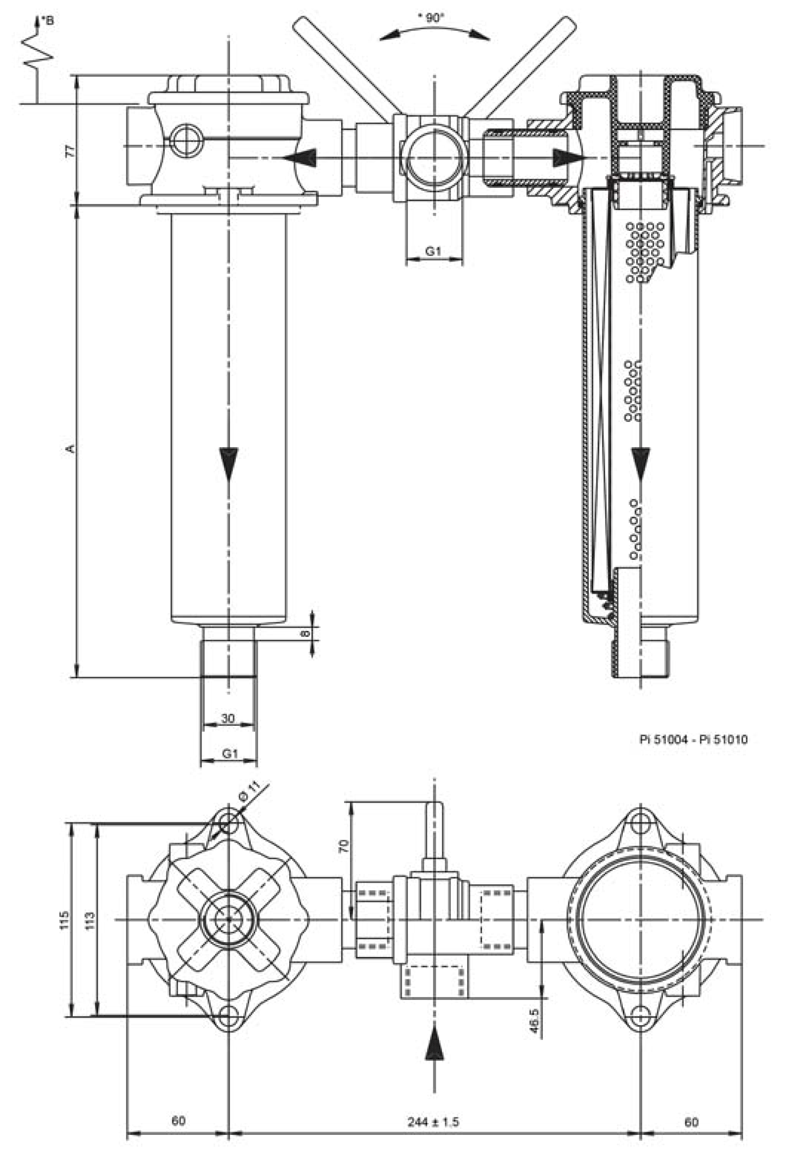

9. Dimensions
*B= Minimum clearance for filter element removal
* 90°= Pivoting range
10. Installation, operating and maintenance instructions
see data sheet Pi 5000
11. Spare parts list
see data sheet Pi 5000
