| Rigid “Anchor or Guide” Support with Weld Plate |
 |

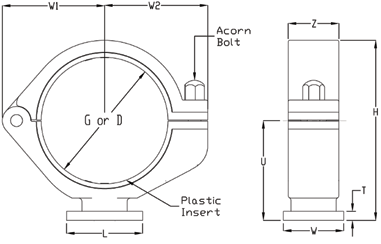

| One piece unit with weld plate attached to hanger housing. |
| Features: |
Compact housing is mounted on a weld plate. This type mounting configuration does not offer the dynamic slope adjustment feature. The CHW hanger is ideal for supporting vertical runs and reducing vibrations. |
| Size Range: |

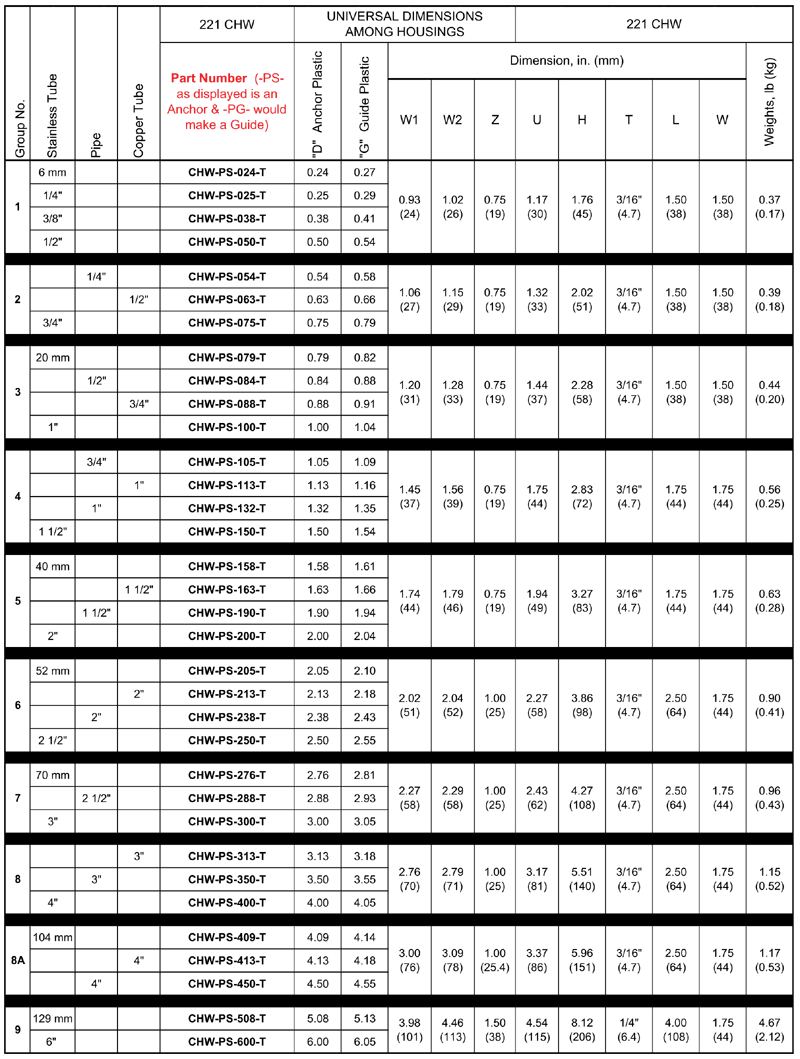

0.24" diameters through 6.00" diameter covering imperial tube, pipe and copper sizes. ISO and DIN standards and special diameters available upon request. |
| Hardware: |
304 stainless steel (Standard), 316 stainless steel also available upon request |
| Finish: |
Stainless steel at a 25 RA |
| Plastic: |
Polysulfone (Black = Anchor and Gray = Guide) |
| Shearing: |
Anchors - Refer to shear force diagram in technical section Guides - Allows free axial movement for thermal expansion of tube or pipe |
