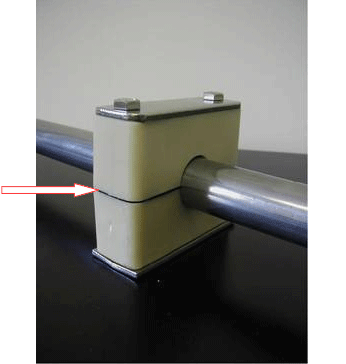

Industrial Clamp Drawing Downloads Click here for more info: Standard Series Heavy Series Twin Series Behringer Webinars Click here for more info: Behringer's Product Specific Webinars Behringer Interchange Elements Click here for Behringer's Interchange Elements:	Thermal Expansion Insert Guide Thermal expansion spacer converts our tight fit "hygienic" clamp into a low friction support, allowing axial movement of a tube or pipe during periods of thermal growth. Suitable for temperatures from -40° F to 302° F. Black "Santoprene" insert provides a positive identification of service. Stock sizes range from 0.25" to 4.50" O.D. Contact factory for other sizes. Available as a preinstalled unit or as a bagged unit which contains all the components needed for a complete assembly.
